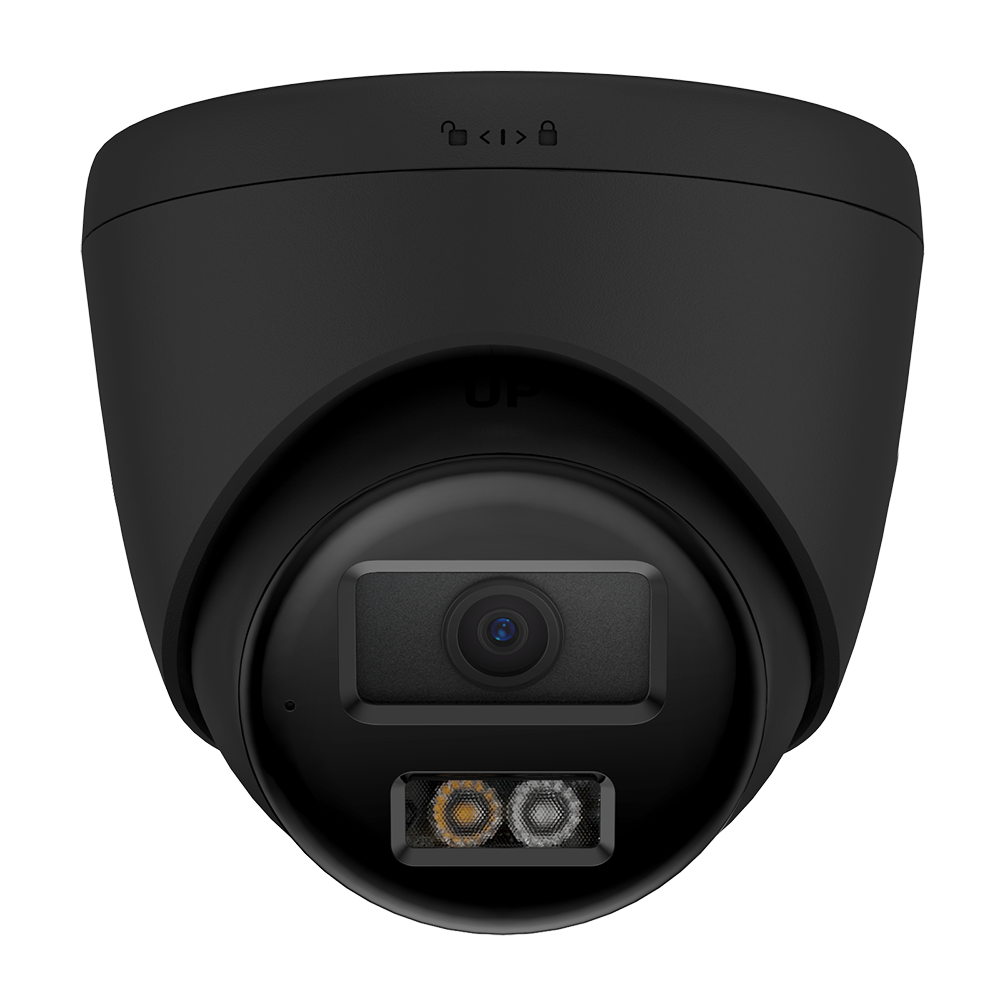

Smart Hybrid PoE IP Camera 4MP Black – IPT240B-HT

Smart Hybrid PoE IP Camera 4MP Black – IPT240B-HT

IPT240B-HT

Taxes included. Shipping calculated at checkout.

Out of stock

  • 4MP smart dual light turret network camera
  • 2.8mm lens brings everything back to life
  • Efficient H.265+ compression technology
  • Support Human Detection
  • Clear day and night vision with 3D DNR
  • Provide real-time security via built-in two-way audio
  • Support on-board storage up to 512 GB (SD card slot)
  • IP67 Dust and Waterproof Rating
  • Support PoE &DC12V

Technical Specifications

Model: IPT240B-HT

Max resolution 4MP(2560*1440)
Main Stream 50 Hz: 20 fps (2560*1440)
Substream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bitrate 32 Kbps to 8 Mbps
Audio Compression G.711ulaw/AAC-LC
Audio Type Mono sound
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Lens 2.8 mm
Min. Illumination Color: 0.001 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Angle of View Horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°
Supplement Light Type IR, White Light
Supplement Light Range IR: up to 20 m White Light: up to 15 m
Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
Linkage Upload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
Image Enhancement BLC, HLC, 3D DNR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
API ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK
Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes, 1 built-in microphone
Built-in Speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Operating Power 12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
Operating Temperature -22 °F – 113 °F/-30 °C – 45 °C
Interface Protection IP67
Dimension (L X W X H) Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)
Weight Approx. 365 g (0.7 lb.)
Weight Approx. 608 g (1.2 lb.)
