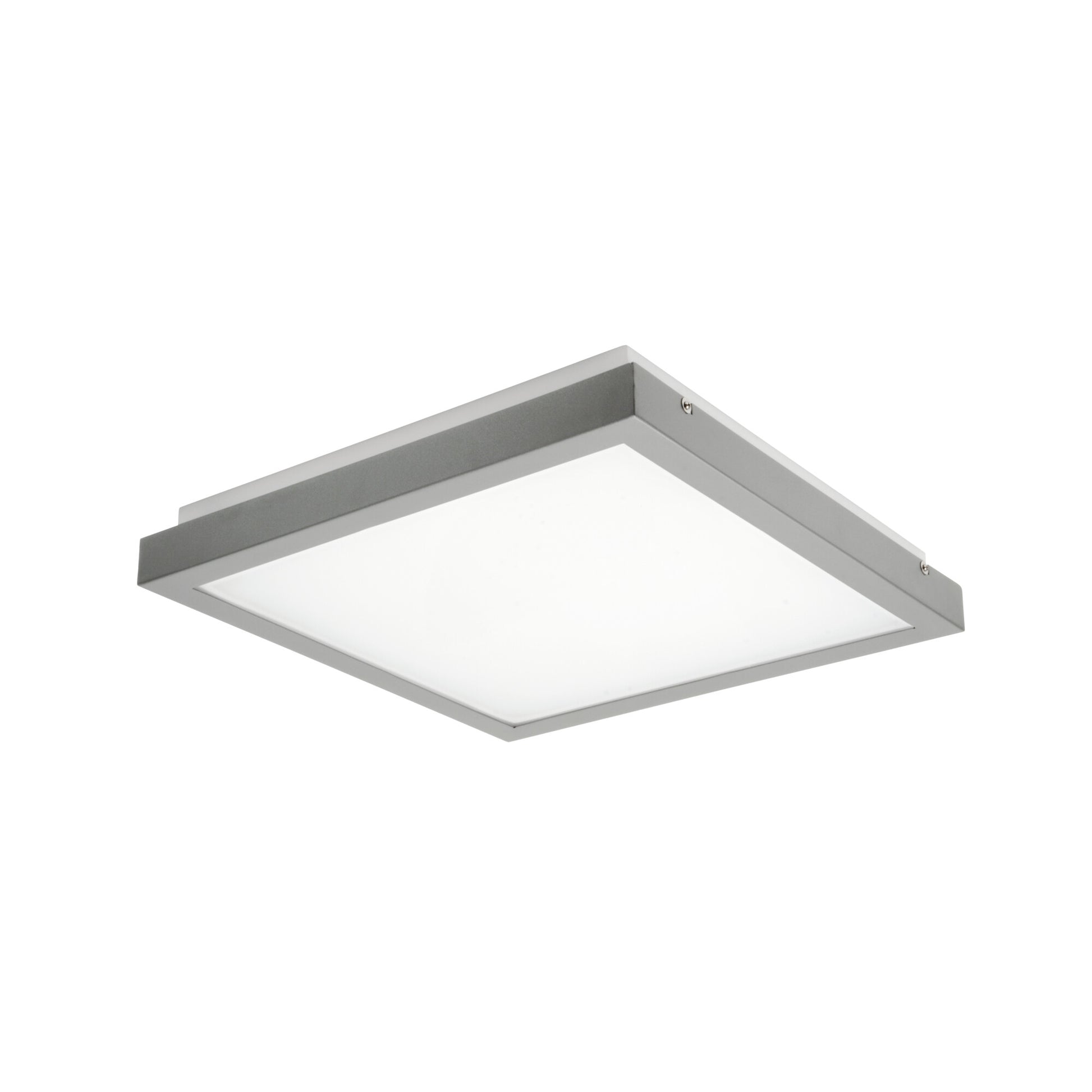

Kanlux TYBIA M 25W-NW-SE GY (24646)
Kanlux TYBIA M 25W-NW-SE GY (24646)
SKU:5905339246462
Regular price
Β£56.70 GBP
Regular price
Sale price
Β£56.70 GBP
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Kanlux TYBIA LED is a general lighting luminaire using SMD diodes. When mounted in corridors, staircases, social or utility rooms, TYBIA LED allows for significant savings related to both reduced energy consumption and the long-term maintenance-free operation.
Specification
| Warranty [years] | 5 |
| EAN13 | 5905339246462 |
| Colour | grey |
| Enclosure material | aluminum alloy |
| Lampshade material | PMMA |
| Height [mm] | 61 |
| Width [mm] | 320 |
| Length [mm] | 320 |
| Weight | 1512g |
| Rated voltage [V] | 220-240 AC |
| Rated frequency [Hz] | 50 |
| Maximum power [W] | 25 |
| Integrated LED light source | Yes |
| Luminous flux of the light fitting [lm] | 2600 |
| Lighting angle [Β°] | 110 |
| Number of on/off cycles | β₯15000 |
| Service life [h] | 30000 |
| Luminous flux retention factor at the end of rated service life | L70B50 |
| Colour temperature [K] | 4000 |
| Colour uniformity [SDCM] | β€6 |
| Colour-rendering index Ra | 80 |
| Mercury content | no |
| Diode type | LED SMD |
| Compatible with a dimmer | no |
| Colour temperature | white |
| Class of protection against electric shock | I |
| IP class | 20 |
| Ambient temperature range to which the product can be exposed | 5Γ·25 |
| Place of assembly | ceiling mounted |
| Connection type | Self-clamping block |
| Range of sections of wires used [mm2] | 1-2,5 |
| Sensor range[m] | max 9,5 |
| Sensor-operation time [second-minute] | 5s/90s/5min/15min |
| Sensor-operation frequency [MHz] | 5800 |
| Sensor type | microwave |
| Movement detection | yes |
| Micro-interval between relay contacts | Yes |
| Sensitivity regulation | Yes |
| Illumination-level setpoint by which the sensor detects movement [lx] | 2/10/50/OFF |
| Minimum distance from the illuminated object | 0,5m |
| Luminous efficiency of the lamp [lm/W] | 104 |
| Useful luminous flux of the light source Ξ¦use [lm] | 3850 |
| Additional information | Containing product (CP) |
| Shape | square |
