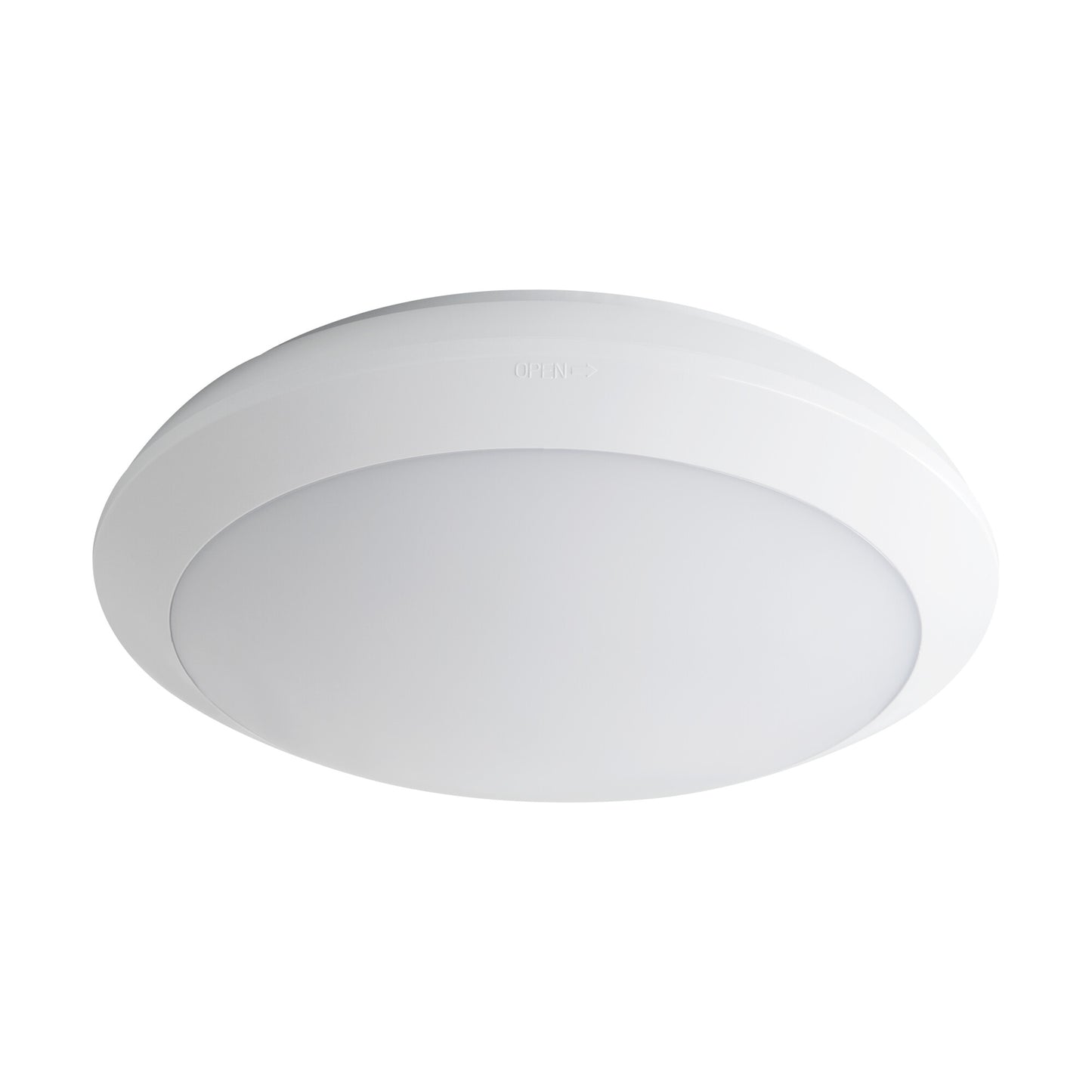

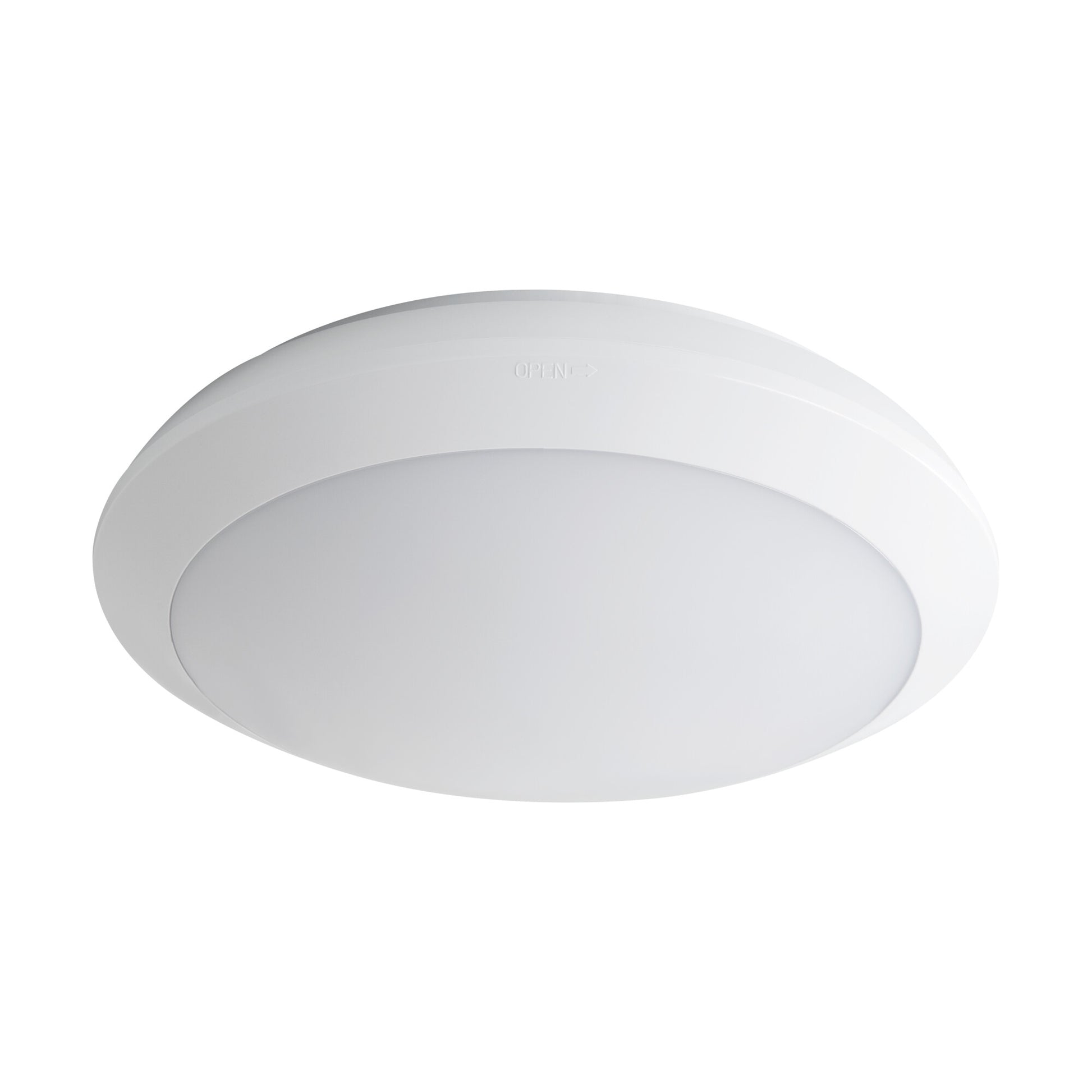

Kanlux DABA N LED SMD DL-16W
Kanlux DABA N LED SMD DL-16W
SKU:5905339190628
Regular price
Β£41.57 GBP
Regular price
Sale price
Β£41.57 GBP
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Kanlux DABA N is an energy-efficient luminaire allows for decreasing energy consumption costs due to the use of motion detectors and dusk-to-dawn sensors. Therefore, it emits light only when it is necessary. Moreover, its parameters (IP66, IK10) allow for mounting it in almost every place! The ceiling luminaire enters standby mode and decreases the luminous flux to 20% after the pre-set time in the absence of motion using the STAND BY DIMMING function.
Specification
| EAN13 | 5905339190628 |
| Colour | white |
| Enclosure material | PC |
| Lampshade material | PC |
| Height [mm] | 87 |
| Diameter [mm] | 300 |
| Weight | 1026g |
| Rated voltage [V] | 220-240 AC |
| Rated frequency [Hz] | 50 |
| Power factor | 0,93 |
| Maximum power [W] | 16 |
| Integrated LED light source | Yes |
| Luminous flux of the light fitting [lm] | 1300 |
| Lighting angle [Β°] | 120 |
| Number of on/off cycles | β₯20000 |
| Service life [h] | 40000 |
| Colour temperature [K] | 4000 |
| Colour uniformity [SDCM] | β€6 |
| Colour-rendering index Ra | 80 |
| Mercury content | no |
| Diode type | LED SMD |
| Compatible with a dimmer | no |
| Colour temperature | white |
| Class of protection against electric shock | II |
| IP class | 66 |
| Ambient temperature range to which the product can be exposed | -15Γ·35 |
| Place of assembly | wall mounted,ceiling mounted |
| IK class | 10 |
| Connection type | Self-clamping block |
| Range of sections of wires used [mm2] | 0,75-2,5 |
| Sensor range[m] | max 8 |
| sensor working angle [Β°] | H360 |
| Sensor-operation time [second-minute] | 10-10 |
| Sensor-operation frequency [MHz] | 5800 |
| Sensor type | microwave |
| Sensitivity regulation | Yes |
| Illumination-level setpoint by which the sensor detects movement [lx] | 5/15/50/2000 |
| Minimum distance from the illuminated object | 0,5m |
| Luminous efficiency of the lamp [lm/W] | 81 |
| Useful luminous flux of the light source Ξ¦use [lm] | 2000 |
| Additional information | Containing product (CP) |
| Shape | round |
