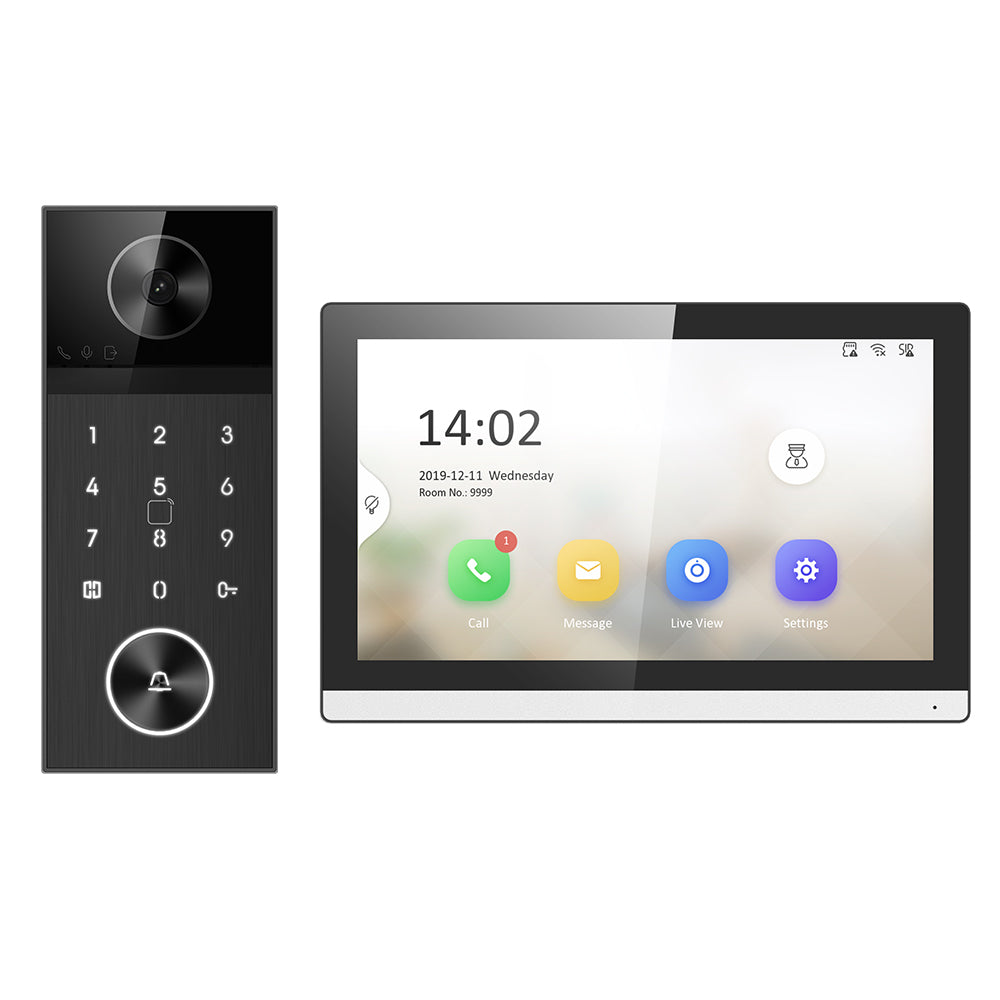

Hizone Pro Intercom Villa Station Kit with Access Control – KIT903-PW
Hizone Pro Intercom Villa Station Kit with Access Control – KIT903-PW
SKU:KIT903-PW
Regular price
£253.57 GBP
Regular price
Sale price
£253.57 GBP
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- 4MP higher resolution with 150° viewing angle
- 2-lock control
- Multiple unlocking methods: card, PIN code, Bluetooth, Hik-Connect, indoor station
- Video recording and playback via indoor station or door station
- Standard PoE power supply
Technical Specifications
Model: KIT903-PW
| Door Station – Operating System | Linux |
| Door Station – Processor | Embedded high-performance processor |
| Door Station – RAM | 512 MB |
| Door Station – ROM | 4 GB |
| Door Station – Supplement Light | IR light, up to 3 m |
| Door Station – Resolution | Main stream: 4MP (2688×1520P), 2MP (1920×1080P), 1MP (1280×720P); Sub stream: 2MP (1920×1080P), 1MP (1280×720P), 0.3MP (640×480P) |
| Door Station – Lens | 1 |
| Door Station – FOV | Horizontal: 150°; Vertical: 75° |
| Door Station – Video Compression Standard | H.264; H.265; MJPEG |
| Door Station – Volume Adjustment | Adjustable |
| Door Station – Audio Performance | 50 cm 80 dB (Maximum: 50 cm 83 dB) |
| Door Station – User Capacity | 2000 |
| Door Station – Card Capacity | 10000 |
| Door Station – Network Protocol | TCP/IP, SIP, RTSP, IPv6, ONVIF |
| Door Station – Wi-Fi | 2.4 GHz |
| Door Station – Bluetooth | Supported |
| Door Station – Wi-Fi Protocol | IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax |
| Door Station – Wi-Fi Type | Wi-Fi 6 |
| Door Station – Card Type | M1 card |
| Door Station – Card Reading Frequency | 13.56 MHz |
| Door Station – Authentication Mode | Card, Bluetooth, PIN code, indoor station, Hik-Connect |
| Door Station – Card Reading Distance | M1 card: 2–2.5 cm |
| Door Station – Motion Detection | Supported |
| Door Station – Playback | Supported |
| Door Station – Call Elevator | Supported |
| Door Station – Smart Features | Sound classification detection: scream, glass breaking, crying (recommended detection distance 3 m) |
| Door Station – Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Door Station – Exit Button | 1 |
| Door Station – RS-485 | 1 |
| Door Station – Lock Control | 2 relay, max. 30 VDC 2 A |
| Door Station – Door Contact Input | 1 |
| Door Station – Alarm Input | 4 (includes exit button and door contact input) |
| Door Station – Alarm Output | 0 |
| Door Station – Tamper | 1 |
| Door Station – TF Card | Supports TF card, up to 128 GB |
| Door Station – Supported TF Format | FAT32, exFAT |
| Door Station – Button | 1 physical button |
| Door Station – Indicator | 3 |
| Door Station – Power Consumption | < 10 W |
| Door Station – Working Temperature | -40°C to 60°C (-40°F to 140°F) |
| Door Station – Working Humidity | 10% to 90% (non-condensing) |
| Door Station – Application Environment | Outdoor |
| Door Station – Dimensions (W × H × D) | 164 mm × 69 mm × 24.7 mm (6.46″ × 2.72″ × 0.97″) |
| Door Station – Protective Level | IP65 |
| Door Station – Installation | Surface mounting |
| Door Station – Weight | Without package: 273 g (0.61 lb); With package: 431 g (0.95 lb) |
| Door Station – Material | Front/rear shell: plastic; viewing window panel: glass |
| Door Station – Power Supply | 12 VDC, 1.2 A, IEEE 802.3at, standard PoE |
| Door Station – Language | English, Arabic, French, Russian, Spanish, Italian, German, and 25+ other languages |
| Door Station – Power Supply Output | Max. 12 VDC, 1 A |
| Indoor Station – Audio Input | 1 built-in omnidirectional microphone |
| Indoor Station – Audio Output | 1 built-in loudspeaker |
| Indoor Station – Audio Quality | Noise suppression and echo cancellation |
| Indoor Station – Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Indoor Station – Audio Compression Bitrate | 16–64 Kbps |
| Indoor Station – Wired Network | 1 RJ-45, 10/100 Mbps self-adaptive |
| Indoor Station – Wireless Network | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Indoor Station – Network Protocol | TCP/IP, SIP, RTSP |
| Indoor Station – RS-485 | 1 RS-485 (half duplex) |
| Indoor Station – Alarm Input | 8-channel alarm inputs |
| Indoor Station – Relay Output | 2 |
| Indoor Station – TF Card | Supports TF card, up to 128 GB |
| Indoor Station – Power Consumption | ≤ 5 W |
| Indoor Station – Working Temperature | -10°C to 50°C (14°F to 122°F) |
| Indoor Station – Power Supply | 12 VDC, 1 A, IEEE802.3af, standard PoE |
| Indoor Station – Working Humidity | 10% to 90% (non-condensing) |
| Indoor Station – Dimensions (W × H × D) | 174.99 mm × 113.49 mm × 21 mm (6.89″ × 4.47″ × 0.83″) |
