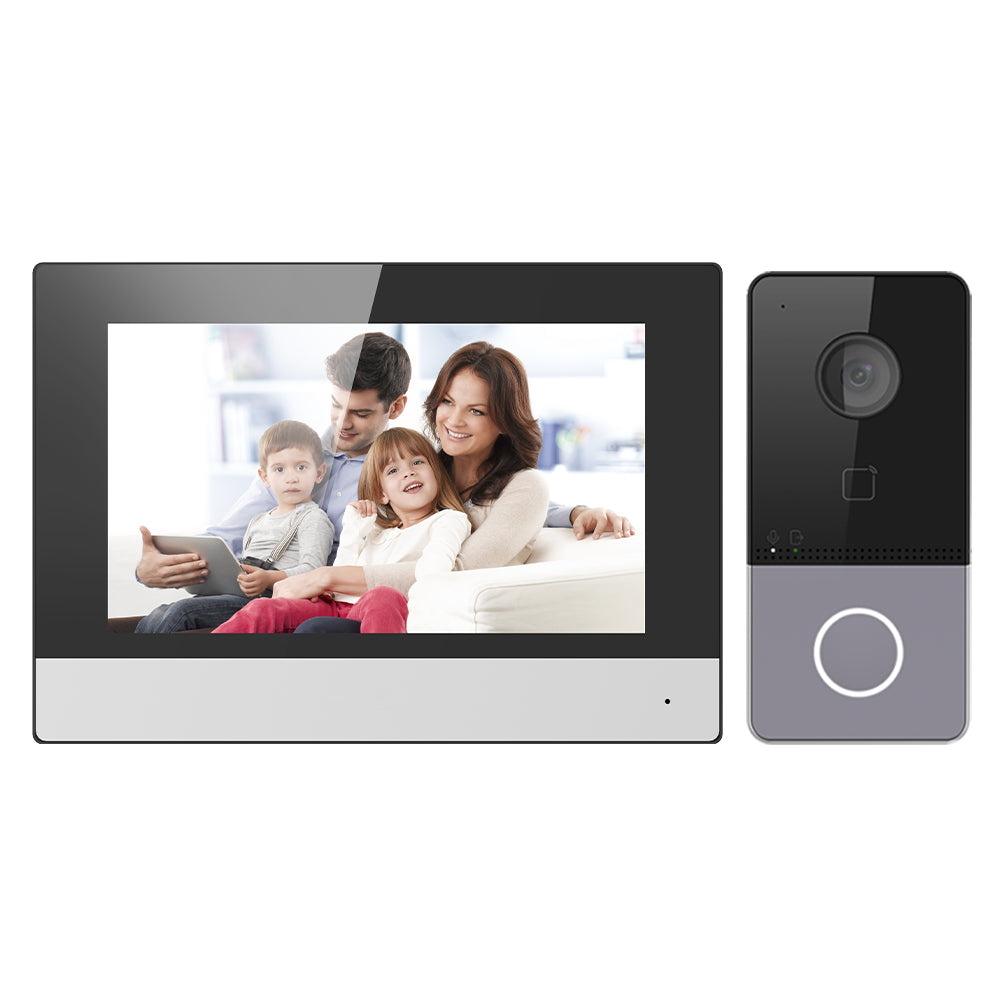

Hizone Pro Intercom Villa Station Kit – KIT703-PW
Hizone Pro Intercom Villa Station Kit – KIT703-PW
SKU:KIT703-PW
Regular price
£210.10 GBP
Regular price
Sale price
£210.10 GBP
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- IP video intercom bundle for villa or house
- One call button for easier calls
- Power adapter included in the package
Technical Specifications
Model: KIT703-PW
| Door Station – Operating System | Embedded Linux operating system |
| Door Station – Flash | 32 MB |
| Door Station – RAM | 256 MB |
| Door Station – Camera | 2MP HD camera |
| Door Station – Night Vision | Low illumination IR supplement mode: 3 m |
| Door Station – Backlight Compensation | Supported |
| Door Station – Digital Noise Reduction | Supported |
| Door Station – WDR | True WDR |
| Door Station – Field of View | Horizontal: 131°, Vertical: 78° |
| Door Station – Video Compression Standard | H.264 |
| Door Station – Stream | Main stream: 1080p@30fps, 720p@25fps; Sub stream: D1@25fps |
| Door Station – Motion Detection | Supported |
| Door Station – Flash-avoid Frequency | 50 Hz, 60 Hz |
| Door Station – Audio Input | Built-in omnidirectional microphone |
| Door Station – Audio Output | Built-in loudspeaker |
| Door Station – Audio Quality | Noise suppression and echo cancellation |
| Door Station – Audio Compression Standard | G.711 U |
| Door Station – Audio Compression Rate | 64 Kbps |
| Door Station – Audio Intercom | Two-way audio communication |
| Door Station – Network Protocol | TCP/IP, RTSP |
| Door Station – Wired Network | 10/100 Mbps Ethernet |
| Door Station – RS-485 | 1 |
| Door Station – Alarm Input | 4 |
| Door Station – Debugging Port | 1 |
| Door Station – Grounding | 1 |
| Door Station – Tamper Switch | 1 |
| Door Station – Power Consumption | < 10 W |
| Door Station – Working Temperature | -40°C to 53°C (-40°F to 127.4°F) |
| Door Station – Working Humidity | 10% to 95% |
| Door Station – Dimensions | 138 mm × 65 mm × 27 mm |
| Door Station – Installation | Surface mounting |
| Door Station – Protection Level | IP65 |
| Door Station – Indicator | 2 |
| Door Station – Power Supply | IEEE802.3af, standard PoE, 12 VDC |
| Indoor Station – Operating System | Embedded Linux operating system |
| Indoor Station – Memory | 128 MB |
| Indoor Station – Flash | 32 MB |
| Indoor Station – Display Screen | 7-inch colour TFT screen |
| Indoor Station – Display Resolution | 1024 × 600 |
| Indoor Station – Operation Method | Capacitive touch screen |
| Indoor Station – Audio Input | Built-in omnidirectional microphone |
| Indoor Station – Audio Output | Built-in loudspeaker |
| Indoor Station – Audio Quality | Noise suppression and echo cancellation |
| Indoor Station – Audio Compression Standard | G.711 U |
| Indoor Station – Audio Compression Rate | 64 Kbps |
| Indoor Station – Wired Network | 10/100 Mbps self-adaptive, 1 RJ-45 |
| Indoor Station – Wireless Network | Wi-Fi 802.11 b/g/n |
| Indoor Station – Protocol | TCP/IP, SIP, RTSP |
| Indoor Station – RS-485 | 1 |
| Indoor Station – Alarm Input | 8-channel alarm inputs |
| Indoor Station – Relay Output | 2 |
| Indoor Station – TF Card | Max 32 GB, SD 2.0 or lower version |
| Indoor Station – Power Consumption | ≤ 6 W |
| Indoor Station – Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Indoor Station – Working Humidity | 10% to 90% |
| Indoor Station – Dimensions (L × W × H) | 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
