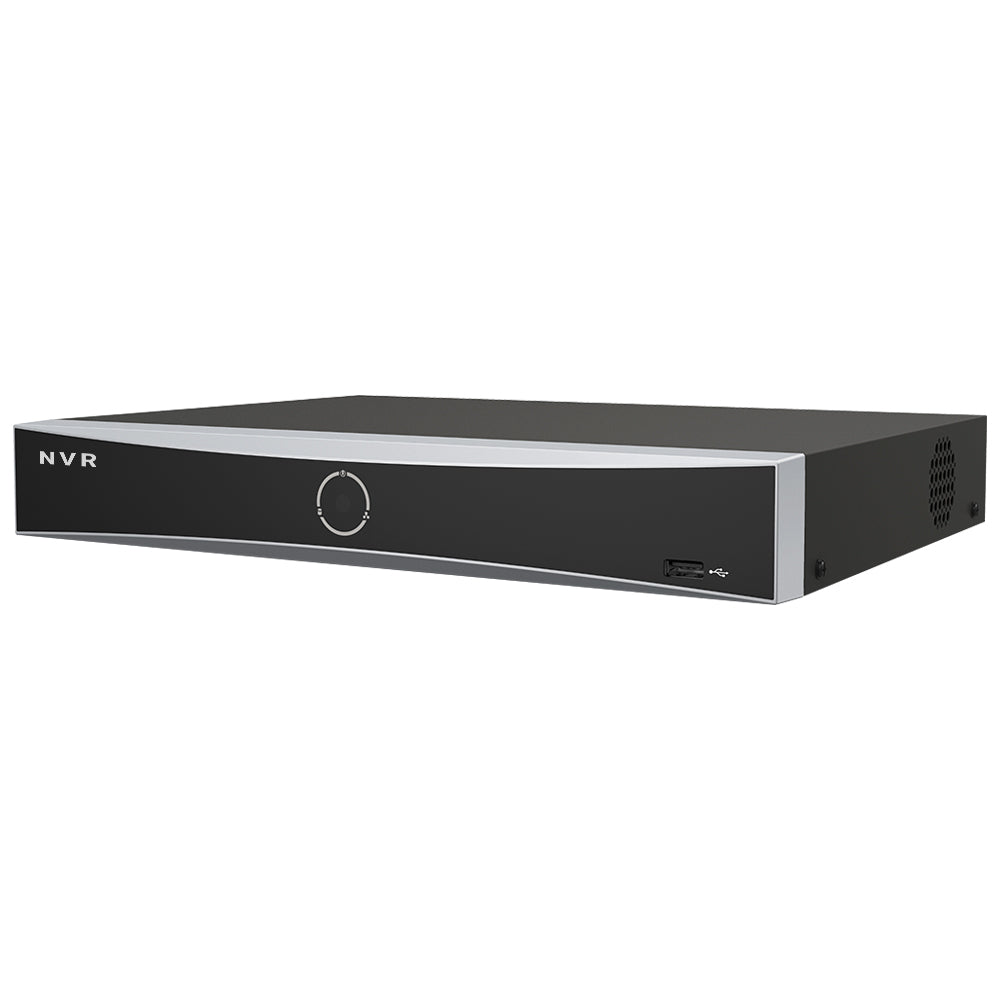

4K 12MP 8-Channel PoE NVR – NVR1208-8P
4K 12MP 8-Channel PoE NVR – NVR1208-8P
SKU:NVR1208-8P
Regular price
£195.61 GBP
Regular price
Sale price
£195.61 GBP
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- Adopts IntelSense technology to minimise manual effort and security costs
- Efficient playback with IntelSearch technology
- Accurate perimeter protection effectively reduces false alarms
- Automatic camera connection and configuration
- Up to 8-ch IP camera inputs, plug & play with 8 Power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 3-ch@12 MP or 5-ch@8 MP or 10-ch@4 MP or 20-ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
Technical Specifications
Model: NVR1208-8P
| AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR |
| Face Picture Library | Up to 16 libraries, up to 50,000 face pictures total (each ≤ 1 MB, total capacity ≤ 1 GB) |
| Facial Detection Performance | Up to 4MP: 2-ch; 8MP to 5MP: 1-ch |
| Face Picture Comparison (from Camera) | 8-ch |
| Motion Detection 2.0 (by Device) | All channels, 4 MP (up to 8 MP with enhanced SVC mode) human/vehicle recognition |
| Motion Detection 2.0 (by Camera) | All channels |
| Perimeter Protection (by Device) | Up to 4MP: 2-ch; 8MP to 5MP: 1-ch, human/vehicle recognition |
| Perimeter Protection (by Camera) | All channels |
| IP Video Input | 8-ch |
| IP Speaker Input | 4-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, up to 4K (3840×2160)/30Hz |
| VGA Output | 1-ch, up to 1920×1080/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-ch |
| Decoding Capability | AI on: 16-ch@1080p (30fps); AI off: 20-ch@1080p (30fps) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Remote Connection | 128 |
| API | ONVIF (Profile S/G), SDK, ISAPI |
| Compatible Browser | IE11, Chrome 57+, Firefox 52+, Safari 12+, Edge 89+ |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Network Interface | 1× RJ-45 10/100/1000 Mbps self-adaptive |
| PoE Interface | 8× RJ-45 10/100 Mbps self-adaptive |
| PoE Power | ≤ 75 W, IEEE 802.3af/at |
| SATA | 1 interface, up to 16 TB per HDD |
| USB Interface | Front: 1× USB 2.0; Rear: 1× USB 2.0 |
| Power Supply | 48 VDC, 1.875 A |
| Consumption | ≤ 10 W (without HDD, PoE off) |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 10% to 90% |
| Dimensions (W×D×H) | 319mm × 240mm × 48mm |
| Weight | ≤ 1.3 kg (without HDD) |
