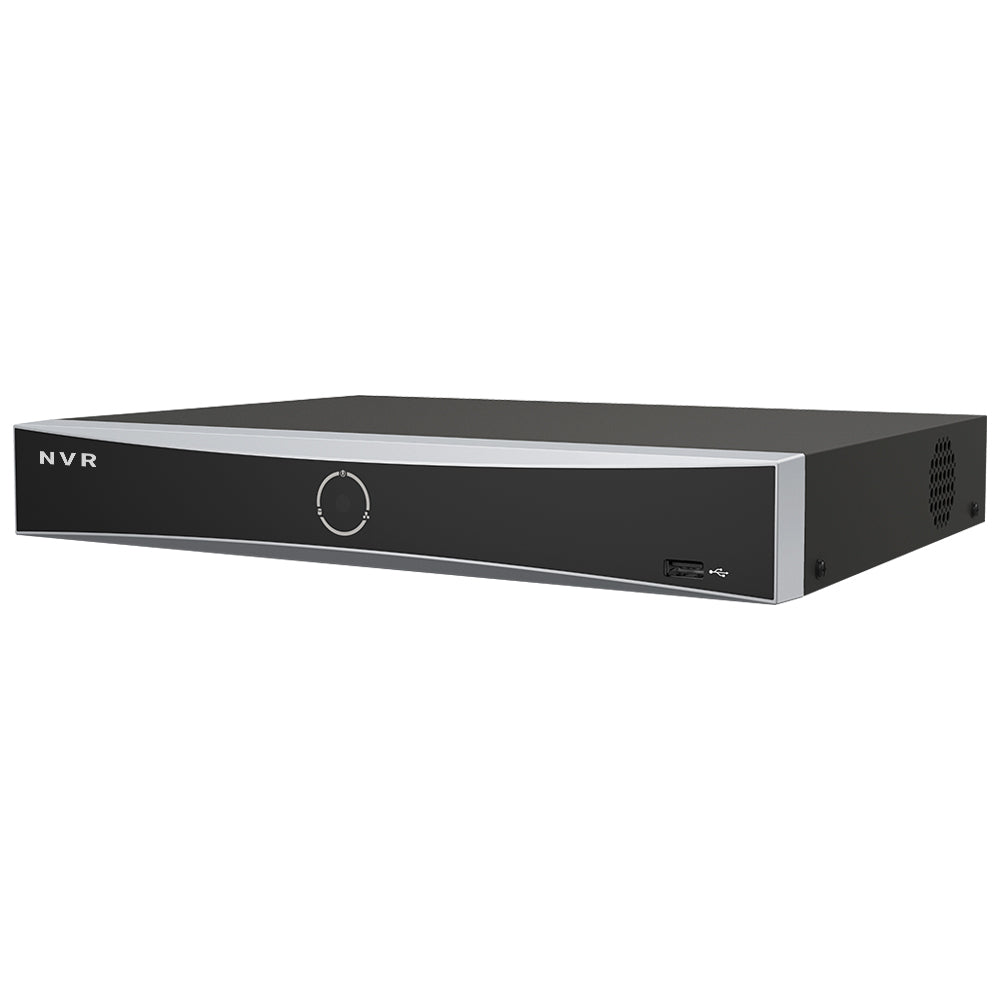

4K 12MP 4-Channel PoE NVR – NVR1204-4
4K 12MP 4-Channel PoE NVR – NVR1204-4
SKU:NVR1204-4P
Regular price
£161.00 GBP
Regular price
Sale price
£161.00 GBP
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- Up to 4-ch IP camera inputs, plug & play with 4 Power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 5-ch@4 MP or 10-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopts IntelSense technology to minimise manual effort and security costs
Technical Specifications
Model: NVR1204-4P
| AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA |
| Face Picture Library | Up to 16 libraries, up to 20,000 face pictures total (each ≤ 4 MB, total capacity ≤ 1 GB) |
| Facial Detection Performance | 1-ch, 8 MP |
| Face Picture Comparison (from Camera) | 2-ch |
| Motion Detection 2.0 (by Device) | All channels, 4 MP (up to 8 MP with enhanced SVC mode) human/vehicle recognition |
| Motion Detection 2.0 (by Camera) | All channels |
| Perimeter Protection (by Device) | 1-ch, 4 MP (HD network camera, H.264/H.265) human/vehicle recognition |
| Perimeter Protection (by Camera) | All channels |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, up to 4K (3840×2160)/30Hz |
| VGA Output | 1-ch, up to 1920×1080/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Decoding Capability | AI on: 1-ch@12MP/1-ch@8MP/3-ch@4MP/6-ch@1080p (30fps); AI off: 1-ch@12MP/2-ch@8MP/5-ch@4MP/10-ch@1080p (30fps) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Remote Connection | 128 |
| API | ONVIF (Profile S/G), SDK, ISAPI |
| Compatible Browser | IE11, Chrome 57+, Firefox 52+, Safari 12+, Edge 89+ |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Network Interface | 1× RJ-45 10/100/1000 Mbps self-adaptive |
| PoE Interface | 4× RJ-45 10/100 Mbps self-adaptive |
| PoE Power | ≤ 50 W, IEEE 802.3af/at |
| SATA | 1 interface, up to 10 TB per HDD |
| USB Interface | Front: 1× USB 2.0; Rear: 1× USB 2.0 |
| Power Supply | 48 VDC, 1.35 A |
| Consumption | ≤ 10 W (without HDD, PoE off) |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 10% to 90% |
| Dimensions (W×D×H) | 320mm × 240mm × 48mm |
| Weight | ≤ 1 kg (without HDD) |
