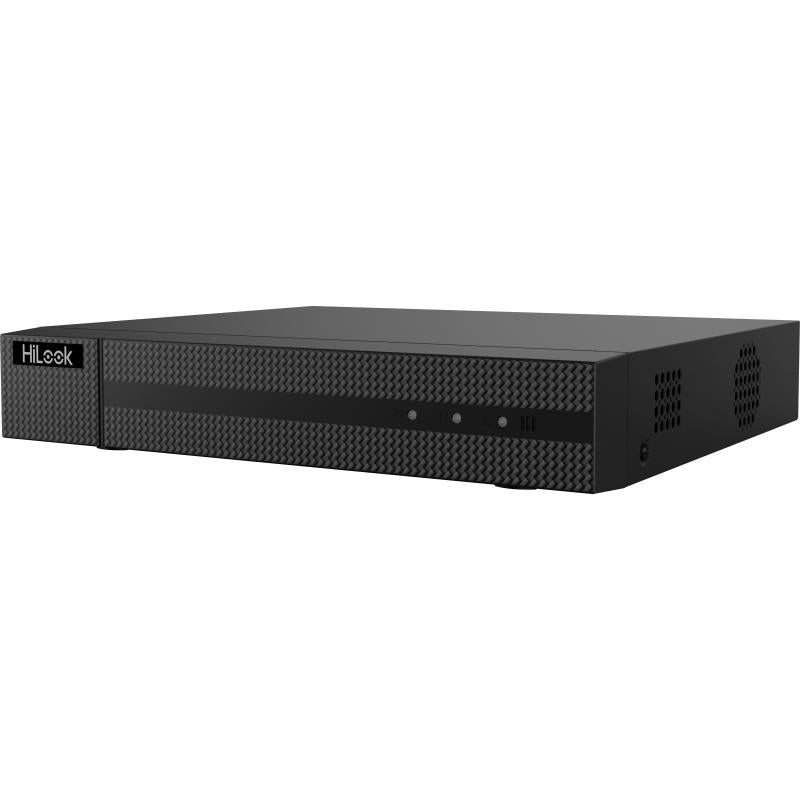

Hilook 8MP 8CH DVR – DVR-208U-M1
Hilook 8MP 8CH DVR – DVR-208U-M1
SKU:DVR-208U-M1
Taxes included.
Shipping calculated at checkout.
In stock
- 8 channels and 1 HDD 1U DVR
- Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
- Up to 16 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Technical Specifications
Model: DVR-208U-M1
| Channels | 8 analog channels (BNC), plus up to 16-ch IP camera inputs (enhanced IP mode) up to 8 MP |
| Signal Input | HDTVI/AHD/HDCVI/CVBS/IP |
| Max. Camera Resolution | 8 MP (4K, HDTVI/HDCVI); IP channels up to 8 MP |
| Recording Resolution | 8MP/5MP/3K/4MP/3MP/1080p/720p down to CIF |
| HDD | 1 SATA interface, up to 10 TB capacity |
| Video/Audio Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio) |
| Network / Interfaces | 1x RJ45 10/100/1000 Mbps; 2x USB 2.0 (rear); 1x HDMI (up to 4K/30Hz) + 1x VGA simultaneous output; Wi-Fi dongle support |
| Smart Features | Deep learning-based Motion Detection 2.0 (human/vehicle classification) |
| Power Supply | 12 VDC, 2 A; consumption ≤ 15 W (without HDD) |
| Dimensions | 263 x 225 x 48 mm |
| Operating Temperature | -10°C to +55°C |
