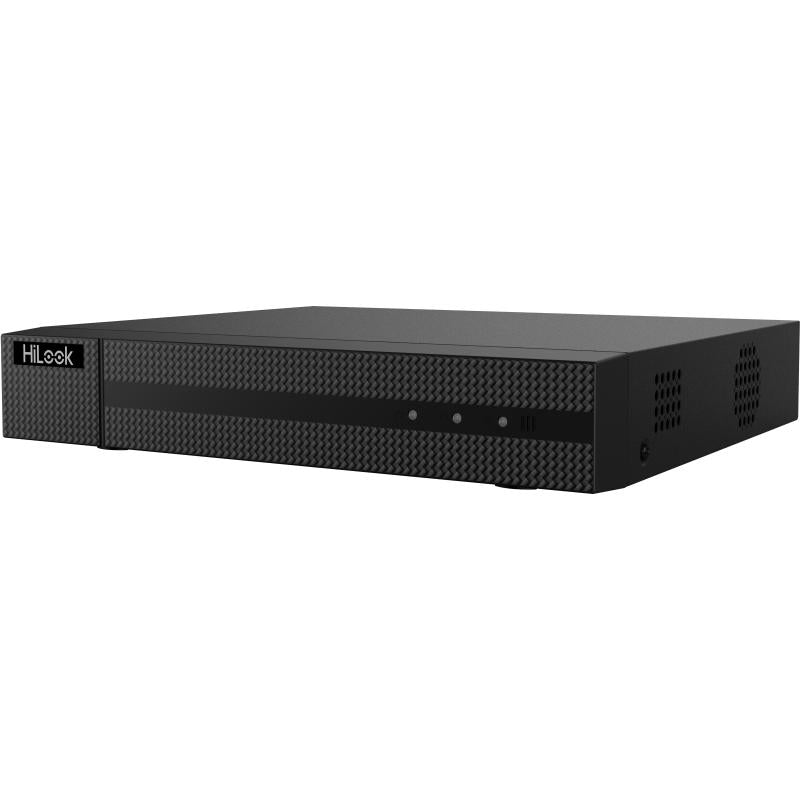

Hilook 8MP 4CH DVR – DVR-204U-M1

Hilook 8MP 4CH DVR – DVR-204U-M1

DVR-204U-M1

Taxes included. Shipping calculated at checkout.

In stock

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 6-ch IP camera inputs (up to 8 MP)
  • Up to 8 MP@8 fps encoding capability

Technical Specifications

Model: DVR-204U-M1

Channels 4 analog channels (BNC), plus up to 8-ch IP camera inputs (enhanced IP mode) up to 8 MP
Signal Input HDTVI/AHD/HDCVI/CVBS/IP
Max. Camera Resolution 8 MP (4K, channel 1) / 5MP (HDTVI); IP channels up to 8 MP
Recording Resolution 8MP/5MP/3K/4MP/3MP/1080p/720p down to CIF; 8MP@8fps on channel 1
HDD 1 SATA interface, up to 10 TB capacity
Video/Audio Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio)
Network / Interfaces 1x RJ45 10/100 Mbps; 2x USB 2.0; 1x HDMI + 1x VGA simultaneous output; Wi-Fi dongle support
Smart Features Deep learning-based Motion Detection 2.0 (human/vehicle classification)
Power Supply 12 VDC, 1.5 A; consumption ≤ 15 W (without HDD)
Dimensions 260 x 222 x 45 mm
Operating Temperature -10°C to +55°C
