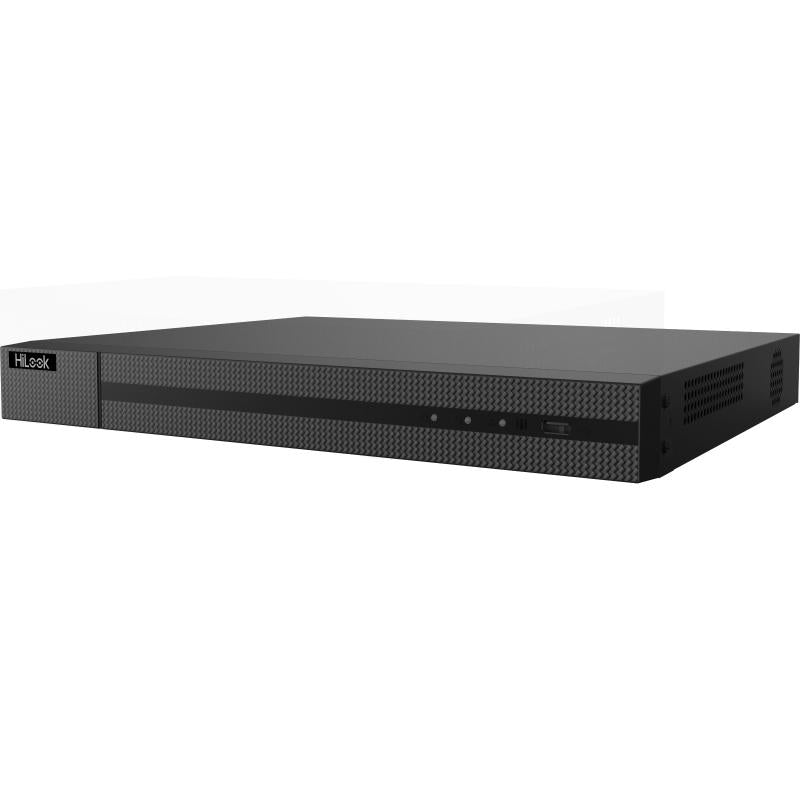

Hilook 8MP 16CH DVR – DVR-216U-M2
Hilook 8MP 16CH DVR – DVR-216U-M2
SKU:DVR-216U-M2
Taxes included.
Shipping calculated at checkout.
In stock
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs (up to 8 MP)
- Up to 8 MP@8 fps encoding capability
Technical Specifications
Model: DVR-216U-M2
| Channels | 16 analog channels (BNC), plus up to 32-ch IP camera inputs (enhanced IP mode) up to 8 MP |
| Signal Input | HDTVI/AHD/HDCVI/CVBS/IP |
| Max. Camera Resolution | 8 MP (4K, HDTVI/HDCVI); IP channels up to 8 MP |
| Recording Resolution | 8MP@8fps/3K@12fps/5MP@12fps/4MP@15fps down to CIF |
| HDD | 2 SATA interfaces, up to 10 TB capacity per disk |
| Video/Audio Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio) |
| Network / Interfaces | 1x RJ45 10/100/1000 Mbps; USB: 1x front, 1x USB 3.0 rear; 1x HDMI (up to 4K/30Hz) + 1x VGA simultaneous output; RS-485; Wi-Fi dongle support |
| Smart Features | Deep learning-based Motion Detection 2.0 (human/vehicle classification) |
| Power Supply | 12 VDC, 5 A; consumption ≤ 25 W (without HDD) |
| Dimensions | 380 x 320 x 48 mm |
| Operating Temperature | -10°C to +55°C |
