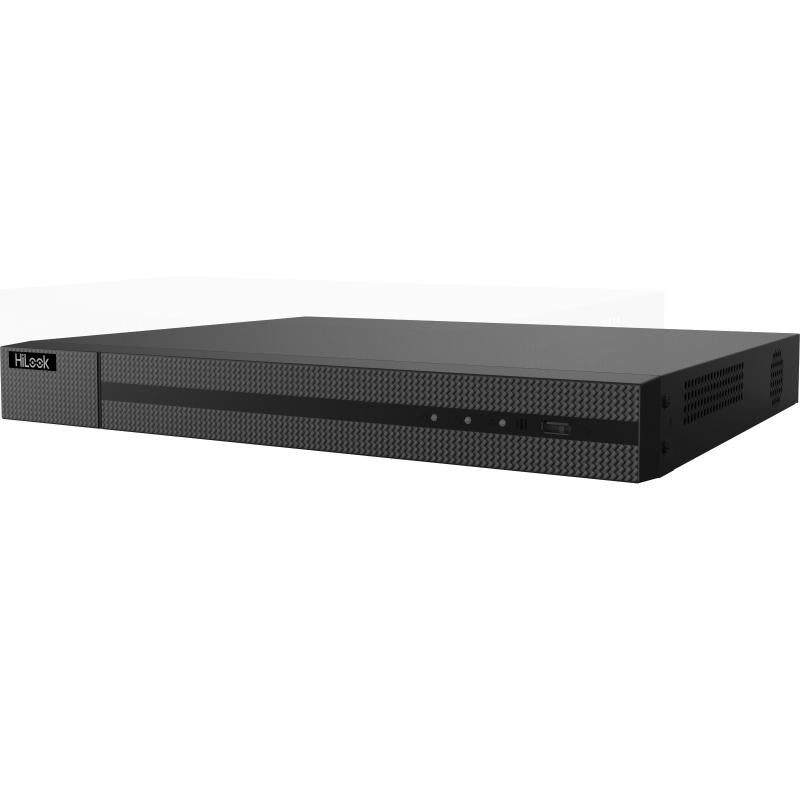

Hilook 5MP/3K 32CH DVR – DVR-232Q-M2
Hilook 5MP/3K 32CH DVR – DVR-232Q-M2
SKU:DVR-232Q-M2
Regular price
£347.29 GBP
Regular price
Sale price
£347.29 GBP
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- Deep learning-based motion detection 2.0 for all analog channels
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 40 network cameras can be connected
Technical Specifications
Model: DVR-232Q-M2
| Channels | 32 analog channels (BNC), plus up to 40-ch IP camera inputs (enhanced IP mode) up to 6 MP |
| Signal Input | HDTVI/AHD/HDCVI/CVBS/IP |
| Max. Camera Resolution | 3K/5MP (HDTVI). IP channels up to 6 MP |
| Recording Resolution | 4 MP lite/1080p/720p down to CIF. Full-channel recording up to 4 MP lite |
| HDD | 2 SATA interfaces, up to 10 TB capacity per disk |
| Video/Audio Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio) |
| Network / Interfaces | 1x RJ45 10/100/1000 Mbps. USB: 1x USB 2.0 front, 1x USB 3.0 rear. 1x HDMI + 1x VGA simultaneous output. RS-485 |
| Smart Features | Deep learning-based Motion Detection 2.0 for all analog channels, multiple VCA events |
| Power Supply | 12 VDC, 3.3 A. Consumption ≤ 40 W (without HDD) |
| Dimensions | 385 x 315 x 52 mm |
| Operating Temperature | -10°C to +55°C |
