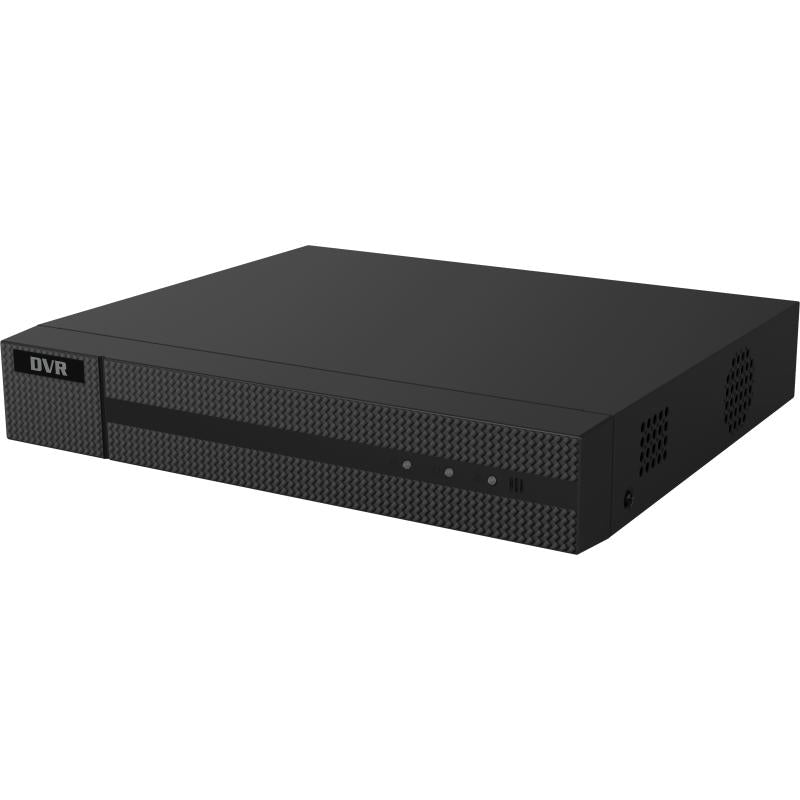

Hilook 2MP 16CH DVR – DVR-216G-M1
Hilook 2MP 16CH DVR – DVR-216G-M1
SKU:DVR-216G-M1
Taxes included.
Shipping calculated at checkout.
In stock
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 18-ch IP camera input (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Support all channels HDTVI two-way audio technology
Technical Specifications
Model: DVR-216G-M1
| Channels | 16 analog channels (BNC), plus 2-ch (up to 18-ch) IP camera inputs up to 5 MP |
| Signal Input | HDTVI/AHD/HDCVI/CVBS/IP |
| Max. Camera Resolution | 1080p (analog); IP channels up to 5 MP |
| Recording Resolution | 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF, main stream up to 15 fps |
| HDD | 1 SATA interface, up to 6 TB capacity |
| Video/Audio Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio) |
| Network / Interfaces | 1x RJ45 10/100 Mbps; 2x USB 2.0; 1x HDMI + 1x VGA simultaneous output |
| Smart Features | Deep learning-based Motion Detection 2.0 (human/vehicle classification) on all analog channels |
| Power Supply | 12 VDC, 1.6 A; consumption ≤ 10 W (without HDD) |
| Dimensions | 263 x 225 x 48 mm |
| Operating Temperature | -10°C to 55°C |
