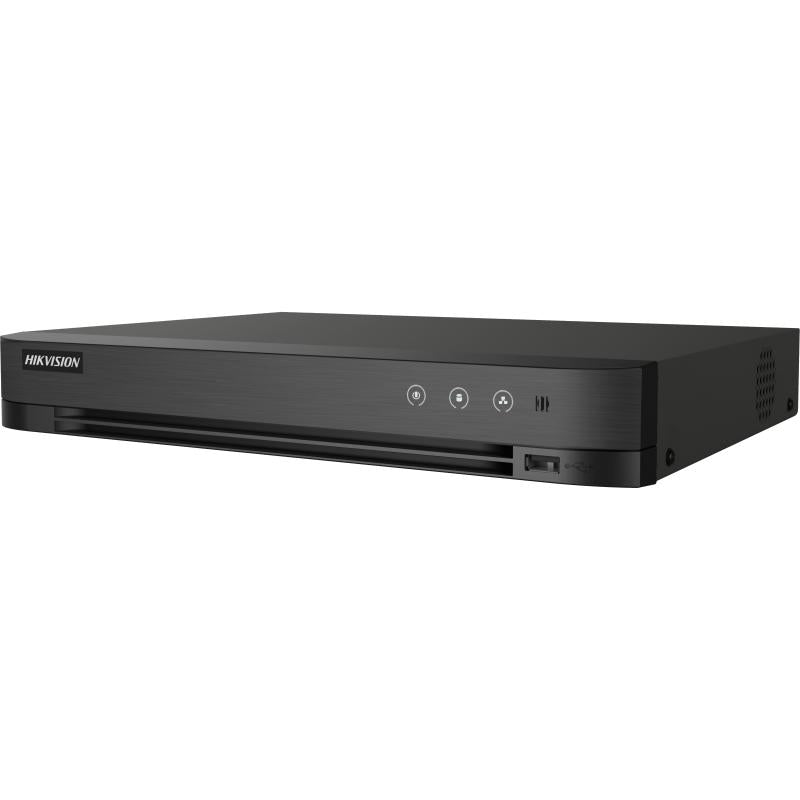

Hikvision 8MP 4CH DVR – IDS-7204HUHI-M1/XT
Hikvision 8MP 4CH DVR – IDS-7204HUHI-M1/XT
SKU:IDS-7204HUHI-M1/XT
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- 4 channels and 1 HDD 1U AcuSense DVR
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 4-ch AcuSearch Technology
- Encoding ability up to 4K/8MP @ 8fps(1-ch). 3K/5MP @12fps
- Up to 8 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Technical Specifications
Model: IDS-7204HUHI-M1/XT
| Channels | 4 analog channels (BNC), plus up to 8-ch IP camera inputs (enhanced IP mode) up to 8 MP |
| Signal Input | 5-signal adaptive: HDTVI/AHD/HDCVI/CVBS/IP |
| Max. Camera Resolution | 8 MP (4K, channel 1) / 5MP (HDTVI). IP channels up to 8 MP |
| Recording Resolution | 8MP@8fps/3K@12fps/5MP@12fps/4MP@15fps down to CIF |
| HDD | 1 SATA interface, up to 12 TB capacity |
| Video/Audio Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio) |
| Network / Interfaces | 1x RJ45 10/100 Mbps. USB: 1x front, 1x USB 3.0 rear. 1x HDMI + 1x VGA simultaneous output. RS-485 |
| Smart Features | Up to 2-ch facial recognition/comparison, Motion Detection 2.0 (all channels), up to 4-ch perimeter protection |
| Power Supply | 12 VDC, 1.5 A. Consumption ≤ 10 W (without HDD) |
| Dimensions | 319 x 235 x 48 mm |
| Operating Temperature | -10°C to 55°C |
