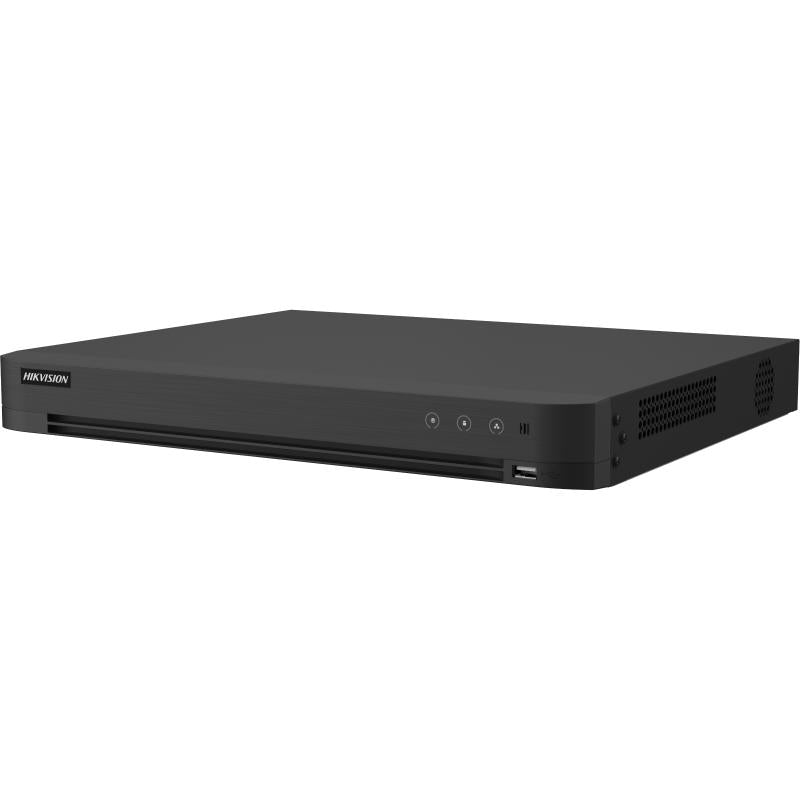

Hikvision 5MP/3K 32CH DVR – IDS-7232HQHI-M2/XT
Hikvision 5MP/3K 32CH DVR – IDS-7232HQHI-M2/XT
SKU:IDS-7232HQHI-M2/XT
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- 32 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 16-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 32-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/5MP Lite@12fps
- Up to 40 channels IP camera inputs, each channel up to 6MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Technical Specifications
Model: IDS-7232HQHI-M2/XT
| Channels | 32 analog channels (BNC), plus up to 40-ch IP camera inputs up to 6 MP |
| Signal Input | 5-signal adaptive: HDTVI/AHD/HDCVI/CVBS/IP |
| Max. Camera Resolution | 3K/5MP Lite (HDTVI). IP channels up to 6 MP |
| Recording Resolution | 3K lite/5MP lite/4MP lite/1080p/720p down to CIF |
| HDD | 2 SATA interfaces, up to 12 TB capacity per disk |
| Video/Audio Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio) |
| Network / Interfaces | 1x RJ45 10/100/1000 Mbps. USB: 1x front, 2x USB 3.0 rear. 1x HDMI (up to 4K/30Hz) + 1x VGA simultaneous output. RS-485 |
| Smart Features | Up to 4-ch facial recognition/comparison, Motion Detection 2.0 (32-ch), up to 8-ch perimeter protection |
| Power Supply | 12 VDC, 5 A. Consumption ≤ 60 W |
| Dimensions | 384 x 313 x 52 mm |
| Operating Temperature | -10°C to +55°C |
