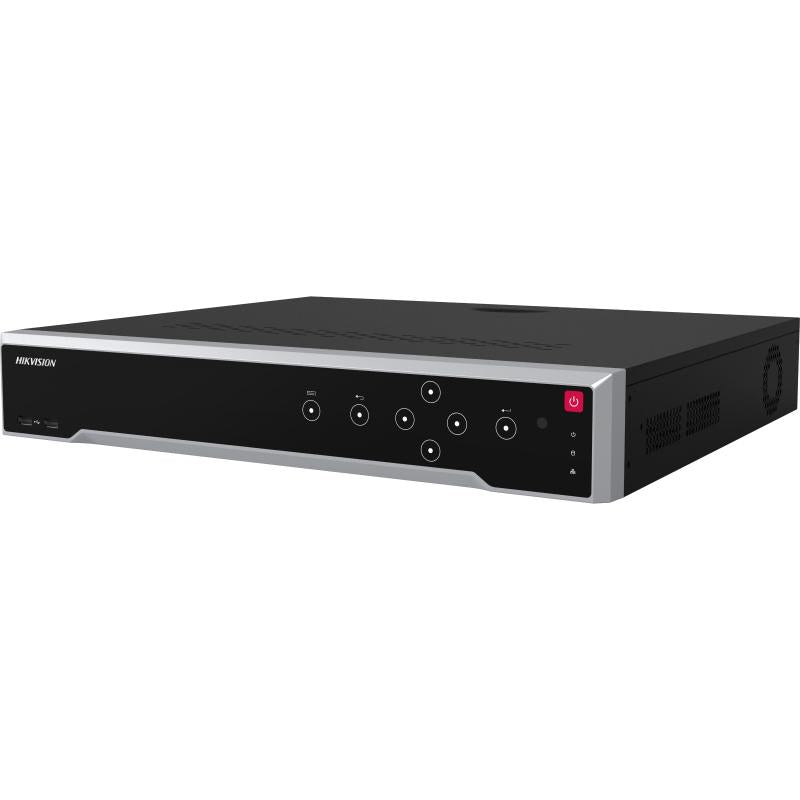

Hikvision 32CH NVR – DS-7732NI-M4/16P
Hikvision 32CH NVR – DS-7732NI-M4/16P
SKU:DS-7732NI-M4/16P
Taxes included.
Shipping calculated at checkout.
In stock
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP camera inputs
- Up to 40 x 1080p@30fps decoding capacity
- Up to 320 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
Technical Specifications
Model: DS-7732NI-M4/16P
| Channels | 32-ch IP video input |
| PoE Ports | 16x independent PoE (802.3af/at) |
| Max. Camera Resolution | Up to 32 MP per channel (up to 8-ch at 32MP/24MP in ultra HD mode) |
| Recording Resolution | 32MP/24MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p down to QCIF |
| HDD | 4 SATA interfaces + 1 eSATA, up to 16 TB capacity per disk |
| Video/Audio Compression | H.265+/H.265/H.264+/H.264 (video); G.711u/alaw/G.722/G.726/AAC/MP2L2 (audio) |
| Network / Interfaces | 1x RJ45 10/100/1000 Mbps; USB: 2x front, 1x USB 3.0 rear; dual HDMI (HDMI1 up to 8K/30Hz, HDMI2 up to 4K/60Hz) + VGA output; 1x CVBS output; 2x RS-485, 1x RS-232; alarm I/O 16/9 |
| PoE Power Budget | ≤ 200 W total (IEEE 802.3af/at) |
| Smart Features | Multiple VCA events (motion, line crossing, intrusion), heat map, ANPR, people counting, POS overlay/triggered recording |
| Power Supply | 100–240 VAC, 50/60 Hz; consumption ≤ 15 W (without HDD, PoE off) |
| Dimensions | 440 x 389 x 72 mm, 19-inch rack-mounted 1.5U chassis |
| Operating Temperature | -10°C to 55°C |
