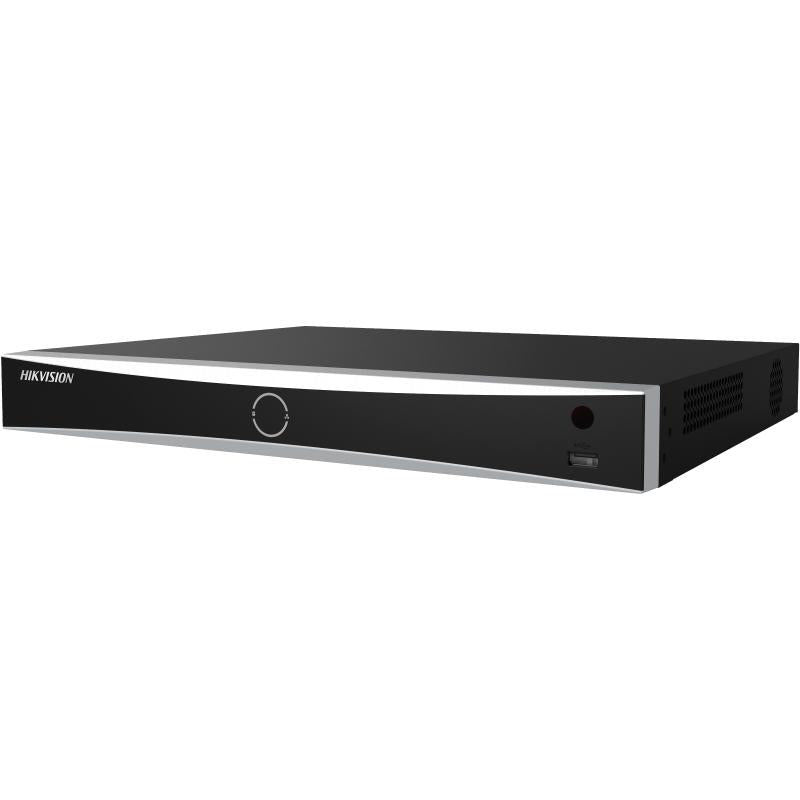

Hikvision 16CH NVR – DS-7616NXI-K2/16P
Hikvision 16CH NVR – DS-7616NXI-K2/16P
SKU:DS-7616NXI-K2/16P
Taxes included.
Shipping calculated at checkout.
In stock
- Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Adopts Hikvision AcuSense technology to minimize manual effort and security costs
Technical Specifications
Model: DS-7616NXI-K2/16P
| Channels | 16-ch IP video input, plus 4-ch IP speaker input |
| PoE Ports | 16x PoE (802.3af/at) |
| Max. Camera Resolution | Up to 16 MP on channel 1; other channels up to 12 MP |
| Recording Resolution | 16MP (ch.1 only)/12MP/8MP/6MP/5MP/4MP/3MP/1080p down to QCIF |
| HDD | 2 SATA interfaces, up to 16 TB capacity per disk |
| Video/Audio Compression | H.265/H.265+/H.264/H.264+ (video); G.711u/alaw/G.722/G.726/AAC/MP2L2 (audio) |
| Network / Interfaces | 1x RJ45 10/100/1000 Mbps; USB: 1x front, 1x rear; independent HDMI (up to 4K/30Hz) + VGA outputs; alarm I/O 4/1 |
| PoE Power Budget | ≤ 200 W total (IEEE 802.3af/at) |
| Smart Features | AcuSense facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch on all channels |
| Power Supply | 100–240 VAC, 50/60 Hz; consumption ≤ 15 W (without HDD) |
| Dimensions | 384 x 317 x 52 mm |
| Operating Temperature | -10°C to 55°C |
