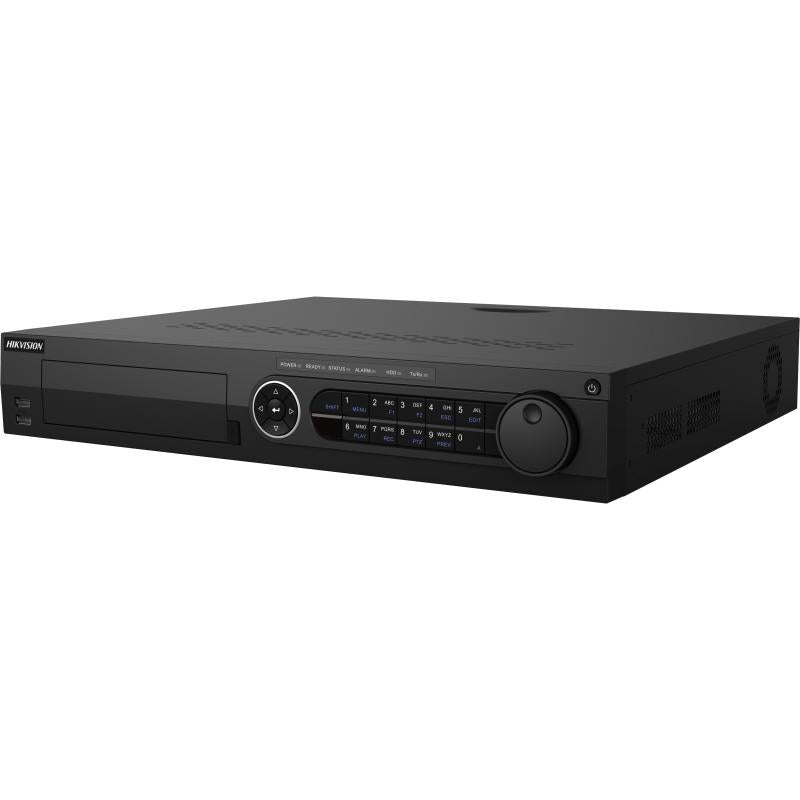

Hikvision 8MP 32CH DVR – IDS-7332HUHI-M4/S
Hikvision 8MP 32CH DVR – IDS-7332HUHI-M4/S
SKU:IDS-7332HUHI-M4/S
Taxes included.
Shipping calculated at checkout.
In stock
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- Up to 32-ch analog camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 64-ch network camera inputs
- POS triggered recording and POS information overlay
Technical Specifications
Model: IDS-7332HUHI-M4/S
| Channels | 32 analog channels (BNC), plus up to 64-ch IP camera inputs up to 12 MP |
| Signal Input | 5-signal adaptive: HDTVI/AHD/HDCVI/CVBS/IP |
| Max. Camera Resolution | 8 MP (HDTVI); IP channels up to 12 MP |
| Recording Resolution | 8MP@8fps/3K@12fps/5MP@12fps/4MP@15fps down to CIF; full-channel recording up to 4 MP Lite |
| HDD | 4 SATA interfaces + 1 eSATA, up to 12 TB capacity per disk; supports RAID 0/1/5/6/10 |
| Video/Audio Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 (video), G.711u (audio) |
| Network / Interfaces | 2x RJ45 10/100/1000 Mbps; USB: 2x front, 1x USB 3.0 rear; Dual HDMI (HDMI1 1080p, HDMI2 up to 4K/30Hz) + VGA; RS-232, RS-485, keyboard port |
| Smart Features | Deep learning-based perimeter protection (up to 16-ch), Motion Detection 2.0 (all analog channels), POS-triggered recording/overlay |
| Power Supply | 100–240 VAC, 50/60 Hz; consumption ≤ 55 W (without HDD) |
| Dimensions | 440 x 399 x 72 mm |
| Operating Temperature | -10°C to +55°C |
