HAC-ME1809H-A-PV

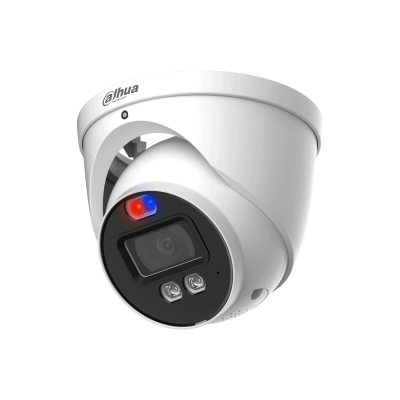

4K Smart Dual Illuminators TiOC HDCVI Eyeball Camera

* The parameters and datasheets below can only be applied to1809-IL series.Intelligent Voice Alarm function which can be used with Scheduled AI of AI XVR is only available for TiOC 2.0 camera.

> Max 15 fps@4K.

> 120 dB true WDR, 3D NR.

> Smart Dual Illuminators.

> Protection Against Red-Blue Light Interference (Only 4K).

> Active deterrence with red blue light, siren and alarm out interface.

> 40 m illumination distance.

> Super Adapt.

> Built-in mic.

> 3.6 mm fixed lens (2.8 mm optional).

> CVI/CVBS/AHD/TVI switchable.

> IP67, 12 VDC.

Share
Category
    Camera
    Image Sensor 4K CMOS
    Max. Resolution 3840 (H) × 2160 (V)
    Scanning System Progressive
    Electronic Shutter Speed PAL: 1/3 s–1/100000 s
    NTSC: 1/4 s–1/100000 s
    Min. Illumination 0.001 lux@F1.0 (Color, 30 IRE)
    0.0001 lux@F1.0 (B/W, 30 IRE)
    0 lux (Illuminator on)
    S/N Ratio >65dB
    Illumination Distance IR: 40 m (131.23 ft)
    Warm light: 40 m (131.23 ft)
    Illuminator On/Off Control Auto; manual
    Illuminator Number 2 (IR light)

    2 (Warm light)
    Pan/Tilt/Rotation Range Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°
    Lens
    Lens Type Fixed-focal
    Mount Type M12
    Focal Length 2.8 mm; 3.6 mm
    Max. Aperture F1.0
    Field of View 2.8 mm: H: 106°; V: 55°; D: 125°
    3.6 mm: H: 85°; V: 45°; D: 100°
    Iris Control Fixed
    Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
    3.6 mm: 2.8 m (9.19 ft)
    Video
    Video Frame Rate CVI:
    PAL: 4k@15 fps; 5M@25 fps; 4M@25 fps;
    NTSC: 4k@15 fps; 5M@25 fps; 4M@30 fps;
    AHD:
    PAL: 4K@15 fps;
    NTSC: 4K@15 fps;
    TVI:
    PAL: 4K@15 fps;
    NTSC: 4K@15 fps;
    CVBS:
    PAL: 960H;
    NTSC: 960H
    Resolution 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
    Day/Night Auto(ICR)/Color/B/W
    BLC BLC; HLC; WDR; HLC-Pro
    WDR 120 dB
    White Balance Auto;Area white balance
    Gain Control Auto; manual
    Noise Reduction 3D NR
    Defog Electronic defog
    Digital Zoom
    Mirror Yes
    Privacy Masking Off/On (8 areas, rectangle)
    Illumination Mode Smart IR&WL; WL Mode; IR Mode
    Certifications
    Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
    Alarm Output 1 channel
    Port
    Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
    Audio Input One channel built-in mic
    Alarm Output 1 channel
    Power
    Power Supply 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
    Power Consumption Max 10.45 W (12 VDC, IR on)
    Environment
    Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
    Operating Humidity <95% (RH), non-condensing
    Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
    Protection IP67
    Storage Humidity <95% (RH), non-condensing
    Anti-corrosion Level Low
    Structure
    Casing Material Metal
    Product Dimensions Φ122.0 mm × 110.9 mm (Φ4.80
    Packaging Dimensions 148 mm × 139 mm × 137 mm (5.83
    Net Weight 0.72 kg (1.59 lb)
    Gross Weight 0.96 kg (2.12 lb)
    Installation Wall mount; ceiling mount; vertical pole mount
    Active Deterrence
    Sound Warning Audio 1: alarm
    Audio2: No parking here
    Audio3: Private land no entry.
    Audio4: Warning zone keep off
    Audio5: Welcome
    Volume: high/medium/low;
    duration: 5 s–60 s; 110 dB
    Red/Blue Light Warning Flash: 5 s–60 s; frequency: high/medium/low
