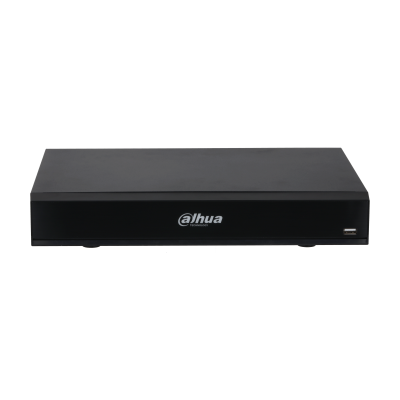

4 Channels Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression.
> Supports 4-channel AI-Coding.
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
> Max 8 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
> Up to 4 channels video stream (analog channel) perimeter protection.
> Up to 4 channels video stream (analog channel) SMD plus.
> Up to 2 channels video stream (analog channel) human face recognition.
> IoT & POS functionalities.
Share
Category4K Series
System
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
Perimeter Protection
| Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
Face Detection
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
Face Recognition
| Face Database Capacity | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
SMD Plus
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
Audio and Video
| Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input |
1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input |
Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Encoding Capacity |
Main stream: 4K@(1fps–15 fps); 6 MP@(1fps–20 fps); 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@(1fps–25/30fps) Sub stream: 960H@(1fps–15fps);D1,CIF@(1fps–25/30fps) |
| Dual-stream | Yes |
| Audio Sampling | 32 kbps–6144 kbps |
| Video Bit Rate | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output |
1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display |
When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
Compression Standard
| Audio Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Video Compression | G.711a; G.711u; PCM |
DVR Network
| Network Mode | Single-address mode |
| Browser | Chrome, IE9 or later, Firefox |
| Interoperability | ONVIF 21.12; CGI |
| Mobile Phone Access | IOS; Android |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Recording Playback
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
Storage
| Disk Group | Yes |
Alarm
| General Alarm | Motion detection; video loss; tampering; local alarm |
| Anomaly Alarm | No disk; storage error; disk full; camera offline; IP conflict; MAC conflict |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
DVR Ports
| Audio Input |
1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature. |
| RS-485 | 1 port, for PTZ control |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Product Dimensions | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
General
| Power Supply | DC 12V, 2A |
| Power Consumption | <10 W (without HDD) |
| Net Weight | 1.00 kg (2.21 lb) |
| Gross Weight | 1.70 kg (3.75 lb) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Packaging Dimensions | 372.0 mm × 117.0 mm × 308.0 mm (14.65'' × 4.61'' × 12.13'') (W × D × H) |
| Operating Humidity | 10%–90% (RH) |
| Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Installation | Rack or desktop |
| Product Dimensions | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
