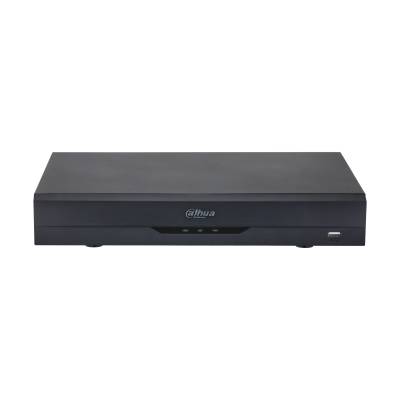

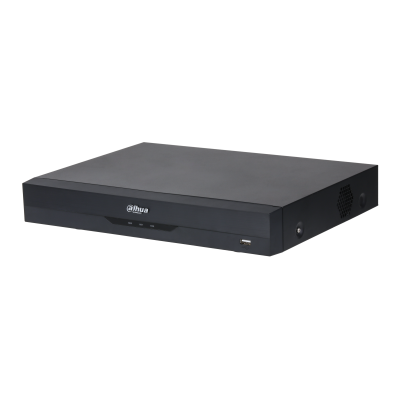

XVR5104H-I3-4P

4 Channels Penta-brid 5M-N/1080P Mini 1U 1HDD WizSense Digital Video Recorder

> H.265+/H.265 dual-stream video compression.

> Supports Full-channel AI-Coding.

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.

> Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth.

> Up to 2 channels video stream (analog channel) perimeter protection.

> Up to 4 channels video stream (analog channel) SMD plus.

> Up to 1 channels video stream (analog channel) human face recognition.

> IoT & POS functionalities.

> All-channel support PoC AT & AF camera.Auto recognize the PoC camera of different power consumptions.

Share
Category
    System
    Main Processor Industrial-grade processo
    Operating System Embedded Linux
    Operating Interface Web; Local GUI
    Perimeter Protection
    Perimeter Performance AI by Recorder (Number of Channels) 2 channels, 10 IVS for each channel
    Face Detection
    Face Attributes Gender; age group; glasses; expressions; face mask; beard
    Face Detection Performance of AI by Recorder (Number of Channels) 1 channel (up to 8 face images/s each channel)
    Face Recognition
    Face Database Capacity Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
    Face Recognition Performance of AI by Recorder (Number of Channels) 1 channel
    SMD Plus
    SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
    Audio and Video
    Analog Camera Input 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
    Camera Input 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
    2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
    3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
    4. CVBS: PAL/NTSC
    IP Camera Input Up to 6 channels of IPC access
    2 IP channels by default + 4 channels (analog channels are converted to IP channels)
    incoming bandwidth: 32 Mbps, recording bandwidth:32 Mbps and outgoing bandwidth:32 Mbps
    *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
    Encoding Capacity Main stream: All channel 5M-N@ (1–10 fps);
    4M-N, 1080p@ (1–15 fps); 1080N, 720p, 960H,
    D1, CIF@ (1–25/30 fps)
    Sub stream: D1, CIF@ (1–15 fps)
    Dual-stream Yes
    Audio Sampling 8 kHz, 16 bit
    Video Bit Rate 32 kbps–6144 kbps
    Audio Bit Rate 64 kbps
    Video Output 1 HDMI, 1 VGA
    HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    Multi-screen Display When IP extension mode not enabled: 1/4
    When IP extension mode enabled: 1/4/6
    Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
    Compression Standard
    Audio Compression G.711a; G.711u; PCM
    Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
    DVR Network
    Network Mode Single-address mode
    Browser Chrome, IE9 or later, Firefox
    Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI
    Mobile Phone Access IOS; Android
    Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
    Recording Playback
    Record Mode General, motion detection; intelligent; alarm; POS
    Recording Playback 1/4
    Backup Method USB device and network
    Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
    Alarm
    General Alarm Motion detection; video loss; tampering; local alarm
    Anomaly Alarm No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
    Intelligent Alarm Face detection; face recognition; perimeter protection
    Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

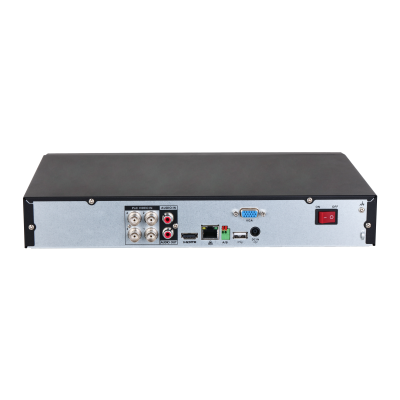

    DVR Ports
    Audio Input 1-channel RCA
    4-channel BNC (Coaxial Audio)
    Audio Output 1-channel RCA
    Two-way Talk Yes (share the same audio input with the first channel)
    HDD Interface 1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
    RS-485 1 port, for PTZ control
    USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
    HDMI 1
    VGA 1
    Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
    General
    Power Supply 53 VDC, 1.13 A
    Power Consumption <7 W (without HDD)
    Net Weight 1.10 kg (2.43 lb)
    Gross Weight 2.12 kg (4.67 lb)
    Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
    Packaging Dimensions 372.0 mm × 117.0 mm × 308.0 mm (14.65'' × 4.61'' × 12.13'') (W × D × H)
    Operating Humidity 10%–90% (RH)
    Certifications CE: CE-LVD: EN 62368-1
    CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
    FCC: Part 15 Subpart B
    Installation Rack or desktop
    Product Dimensions 325.0 mm × 257.1 mm × 55.0 mm (12.80'' × 10.12'' × 2.17'') (W × D × H)
