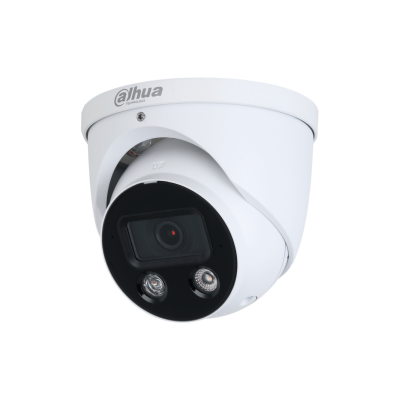

IPC-HDW3549H-AS-PV

5 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

* The parameters and datasheets below can only be applied to 3549-PV-S4 series.

> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.

> 12 VDC/PoE power supply.

> IP67 protection.

> Sound and light alarm (red and blue lights).

> SMD 4.0.

> One press arming/disarming through alarm input.

Share
Category
    Camera
    Image Sensor 1/2.7" CMOS
    Max. Resolution 2960 (H) × 1668 (V)
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
    Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
    0.0003 lux@F1.0 (B/W, 30 IRE)
    0 lux (illuminator on)
    S/N Ratio >56dB
    Illumination Distance 30 m (98.43 ft) (IR)
    30 m (98.43 ft) (warm light)
    Illuminator On/Off Control Auto; manual
    Illuminator Number 1 (IR LED)
    1 (warm light)
    Pan/Tilt/Rotation Range Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°
    ROM 128MB
    RAM 512MB
    Lens
    Lens Type Fixed-focal
    Mount Type M12
    Focal Length 2.8 mm; 3.6 mm
    Field of View 2.8 mm: H: 97°; V: 70°; D: 128°
    3.6 mm: H: 78°; V: 58°; D: 102°
    Iris Control Fixed
    Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
    3.6 mm: 2.2 m (7.22 ft)
    Intelligent
    IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
    SMD 4.0 Less false alarm, longer detection distance
    Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
    Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
    AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
    Video
    Video Frame Rate Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
    Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
    Third stream: 1920 × 1080@(1 fps–25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
    Resolution 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240)
    Day/Night Auto (ICR)/Color/B/W
    BLC Yes
    WDR 120 dB
    White Balance Auto; natural; street lamp; outdoor; manual; regional custom
    Gain Control Auto; manual
    Noise Reduction 3D NR
    Defog Yes
    Digital Zoom
    Mirror Yes
    Privacy Masking 8 areas
    Illumination Mode Smart IR&WL; WL Mode; IR Mode
    Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
    Smart Codec Smart H.265+; Smart H.264+
    AI Coding AI H.265; AI H.264
    Stream Capability 3 streams
    Bit Rate Control CBR/VBR
    Video Bit Rate H.264: 32kbps–8192 kbps

    H.265:12kbps–8192 kbps
    HLC Yes
    Scene Self-adaptation Yes
    Motion Detection OFF/ON (4 areas)
    Region of Interest (RoI) Yes (4 areas)
    Smart Illumination Yes
    Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
    Audio
    Built-in MIC Yes
    Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
    Alarm
    Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
    Network
    Network RJ-45 (10/100 Base-T)
    SDK and API Yes
    Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
    Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
    User/Host 20 (Total bandwidth: 72 M
    Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
    Browser IE: IE8/9/11
    Chrome
    Firefox
    Management Software Smart PSS; DSS; DMSS
    Mobile Phone iOS; Android
    Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP
    Certifications
    Certifications CE-LVD: EN 62368-1;

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

    FCC: 47 CFR FCC Part 15, Subpart B;

    UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
    Port
    Audio Input 1 channel (RCA port)
    Audio Output 1 channel (RCA port)
    Alarm Input 1 channel in: 5 mA 3V–5 VDC
    Alarm Output 1 channel out: 300 mA 12 VDC
    Power
    Power Supply 12 VDC/PoE (802.3af)
    Power Consumption Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 8.3 W (DC12 V) 8.8 W (POE)
    Environment
    Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
    Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
    Protection IP67
    Structure
    Casing Material Metal
    Product Dimensions 110.9 mm × Φ122.0 mm (4.37" × Φ4.80")
    Net Weight 745 g (1.64 lb)
    Gross Weight 915 g (2.02 lb)
